This is a new age of mobile welding. MMA battery powered welding anywhere, anytime.
- RUNS OFF BATTERY POWER, up to 30 electrodes per charge.
- RUNS OFF AC MAINS POWER, 120V / 230V input power.
- POWERED BY DEWALT FLEXVOLT, standard power tool batteries.

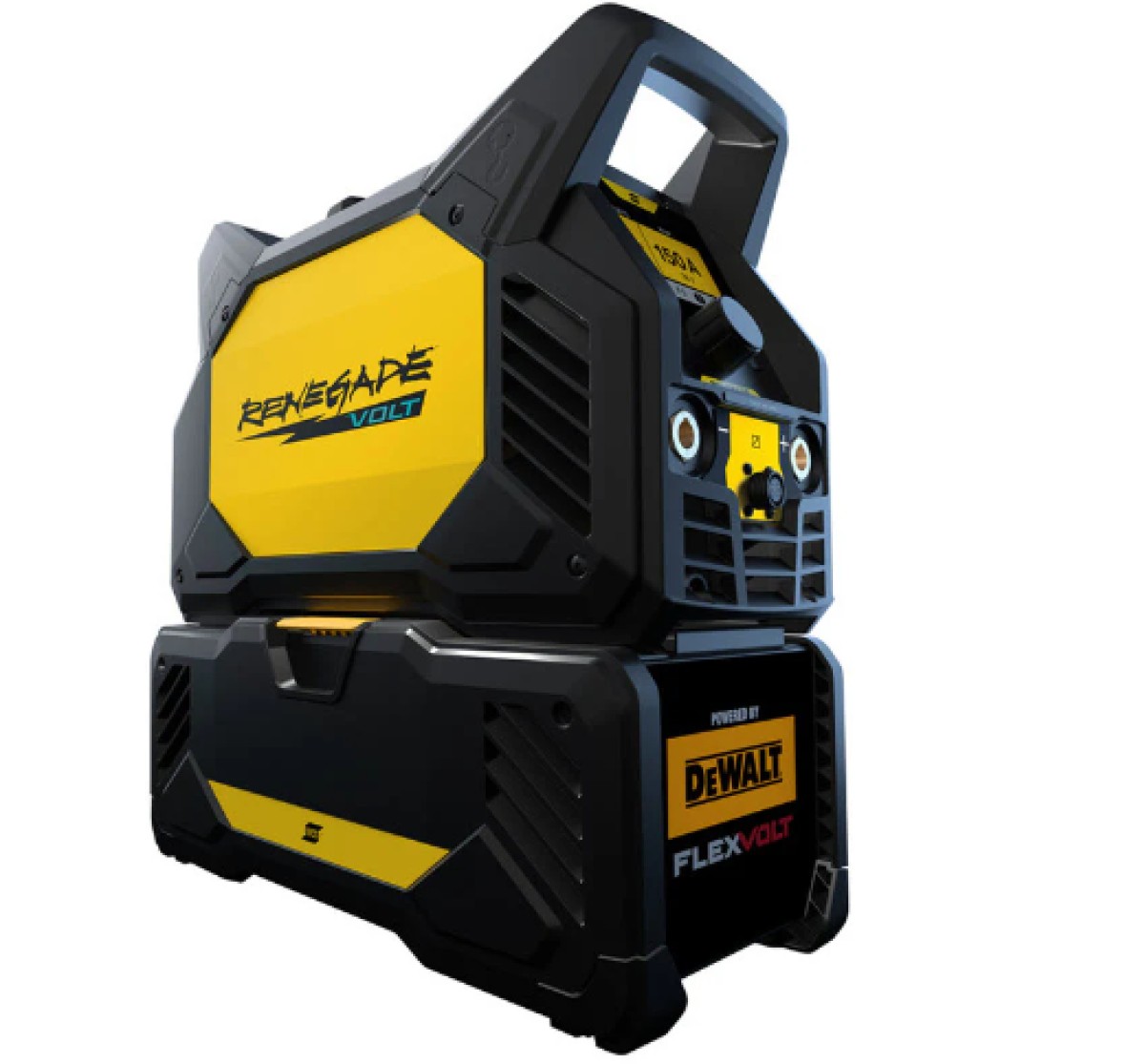

ESAB Renegade VOLT™ ES 200i is a portable, cordless battery powered, Stick (SMAW) and Live TIG (GTAW) welder with the versatility to operate in Battery, Mains, or AMP+ Hybrid Mode.

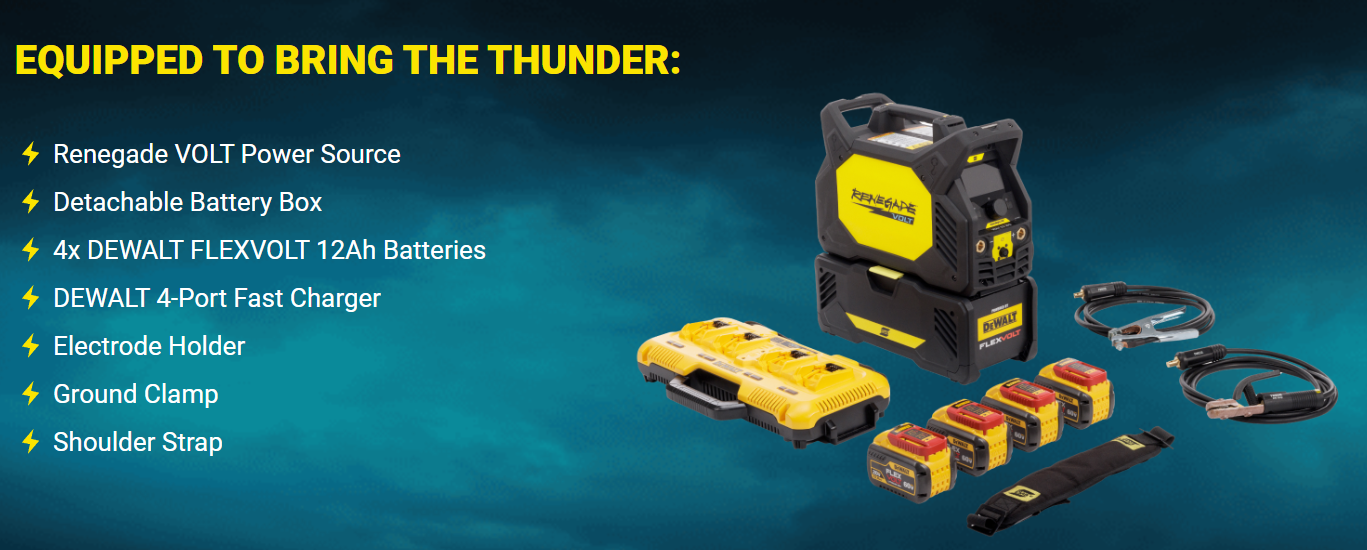

This cordless welder runs on 6 Ah, 9 Ah, and 12 Ah DEWALT® FLEXVOLT® batteries. Renegade VOLT provides the power to burn up to 33 (E6013) electrodes on a single charge using four 12 Ah batteries, that are included in the package.*
Renegade VOLT is a highly portable and powerful unit perfect for mobile welders operating in remote, offsite, or hard-to-reach locations without easy access to AC mains power.
In AMP+ Hybrid Mode, Renegade VOLT supplements AC mains power with battery power to prevent nuisance trips on smaller breaker sizes (e.g., 10A, 16A) or to provide more output when welding on 120V input.
Renegade VOLT features a rugged industrial design with durable, impact-resistant housing and multiple lift points for easy operation and transport in the field. The bright, intuitive color-screen user interface is designed for outdoor use, even in direct sunlight, and features a battery status display and remaining arc time calculator.
This powerful welder offers the highest arc quality with special features that include hot start, arc force, memory storage, and cellulosic mode (6010) to optimize performance based on application or user preference.
Attachments
Here are all the appendices of this article. Click on the icon to download the attachment.
| Instruction Manuals | |
| Factsheets |
| Input Voltage | 120/230 VAC 15 %, 1, 50/60 Hz |
| GTAW (AC) Welding Output | 140 A15.6 V (120 V) @ 25 % Duty Cycle 90 A13.6 V (120 V) @ 60 % Duty Cycle 70 A12.8 V (120 V) @ 100 % Duty Cycle 200 A18.0 V (230 V) @ 25 % Duty Cycle 129 A15.2 V (230 V) @ 60 % Duty Cycle 100 A14.0 V (230 V) @ 100 % Duty Cycle |
| GTAW (AMP+) Welding Output | 180 A17.2 V (120 V) @ 25 % Duty Cycle 130 A15.2 V (120 V) @ 60 % Duty Cycle 100 A14.0 V (120 V) @ 100 % Duty Cycle 200 A18.0 V (230 V) @ 25 % Duty Cycle 129 A15.2 V (230 V) @ 60 % Duty Cycle 100 A14.0 V (230 V) @ 100 % Duty Cycle |
| GTAW (DC) Welding Output | 150 A16.0 V (80 V) @ 18 % Duty Cycle 115 A14.6 V (80 V) @ 25 % Duty Cycle 90 A13.6 V (80 V) @ 60 % Duty Cycle 70 A12.8 V (80 V) @ 100 % Duty Cycle |
| SMAW (AC) Welding Output | 110 A24.4 V (120 V) @ 25 % Duty Cycle 70 A22.8 V (120 V) @ 60 % Duty Cycle 55 A22.2 V (120 V) @ 100 % Duty Cycle 200 A28.0 V (230 V) @ 25 % Duty Cycle 129 A25.2 V (230 V) @ 60 % Duty Cycle 100 A24.0 V (230 V) @ 100 % Duty Cycle |
| SMAW (AMP+) Welding Output | 150 A26.0 V (120 V) @ 25 % Duty Cycle 90 A23.6 V (120 V) @ 60 % Duty Cycle 70 A22.8 V (120 V) @ 100 % Duty Cycle 200 A28.0 V (230 V) @ 25 % Duty Cycle 129 A25.2 V (230 V) @ 60 % Duty Cycle 100 A24.0 V (230 V) @ 100 % Duty Cycle |
| SMAW (DC) Welding Output | 140 A25.2 V (80 V) @ 18 % Duty Cycle 110 A24.4 V (80 V) @ 25 % Duty Cycle 80 A23.2 V (80 V) @ 60 % Duty Cycle 60 A22.4 V (80 V) @ 100 % Duty Cycle |
| 90-270 VAC | |
| Open Circuit Voltage | 80 VDC |
| Power Factor at Maximum Current | 0.99 |
| Efficiency at Maximum Current | 80 % |
| Fuse Slow | 16 A |
| Energy Save Mode | <50 W |
| Supply Plug | NEMA 6-50P (CSA) |
| Operating Temp | -10 - +40 °C ( +14 - +104 °F ) |
| Rated kVA | 2.7 kVA (120 V) 6.0 kVA (230 V) |
| Enclosure Class | IP23 |
| Certification Mark | ETL |
| Dimensions, L x W x H with battery box without battery box |
480 x 220 x 485 mm ( 19 x 9 x 19 in. ) 460 x 200 x 320 mm ( 18 x 8 x 13 in. ) |
| Weight power source and battery box power source, battery box, and 4 battery packs* |
19 kg ( 41 lbs ) 24.5 kg ( 54 lbs ) |
| Setting Range AMP+ DC AC AC AMP+ AMP+ DC AC AMP+ AC |
20.6-28 V (10-200 A) 20.6-25.6 V (10-140 A) 10.4-18 V (10-200 A) 20.6-28 V (10-200 A) 20.6-26 V (10-150 A) 10.4-17.2 V (10-180 A) 10.4-16 V (10-150 A) 20.6-24.4 V (10-110 A) 10.4-18 V (10-200 A) 10.4-17.2 V (10-180 A) |
